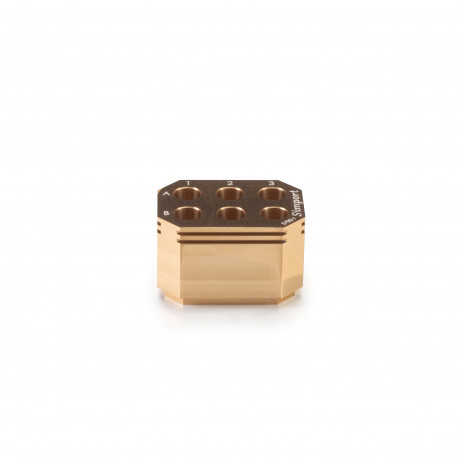

S700 - ChillBlock™ Tube Racks for 1.5 & 2.0 ml tubes

  • Made of thermo-conductive metal alloy
  • Temperature uniformity through ChillBlock™ rack
  • Autoclavable or clean with disinfectants
  • Alphanumeric identification of wells facilitating tube location
  • Anodized surface resistant to rust, corrosion and abrasion

More details

Select from the below options
  • 6
  • 15
  • 30
  • 90
  • 96

ChillBlock™ Microcentrifuge Tube Racks are available in five models from 6 to 96 wells. An alphanumeric grid allows for indexing rows and columns, therefore facilitating tube location. These racks will hold 1.5 ml and 2.0 ml snap cap Microcentrifuge tubes. They will also accommodate the popular 0.5 ml to 2.0 ml screw cap Microcentrifuge tubes such as the Simport Micrewtube® Series.

Use on Ice :

  • Adapts from ambient to <4°C in 60-90 seconds
  • Samples and labels stay dry, organized and uniform in temperature
  • Hours of ice cooling without direct ice contact

Use on Dry Ice :

  • Adapts from ambient to -78°C in 5-7 minutes
  • Eliminates ethanol - cost savings, no hazardous waste
  • Equal or better freezing rate when compared to other methods

Use above Liquid Nitrogen :

  • Adapts from ambient to -140°C in 15 minutes
  • Samples are upright and organized as they freeze
  • No direct contact between samples and liquid nitrogen

Heating Methods :

  • Use ChillBlock™ tube racks with heat sources such as:
  • Waterbath
  • Incubator
  • Hot plate, oven

Cat. No. Wells Dimensions (L x W x H)
S700-1 6  2.4 x 1.7 x 1.5 in / 6.0 x 4.3 x 3.2 cm
S700-4 15 3.8 x 2.4 x 1.5 in / 9.6 x 6.0 x 3.2 cm
S700-6 30 4.5 x 3.8 x 1.5 in / 11.4 x 9.6 x 3.2 cm
S700-8 90 10.8 x 4.5 x 1.5 in / 27.4 x 11.4 x 3.2 cm
S700-10 96 8.7 x 5.9 x 1.5 in / 22.1 x 14.9 x 3.2 cm

Specifications

Container material Thermo-conductive metal
Height (mm) 3.2 cm
Temperature range From -150°C to ˃+100°C
Properties For use with 1.5 ml and 2 ml microcentrifuge tubes
Autoclavable Yes
Qty/Cs 1
Produced in compliance with an ISO 9001-certified quality management system YES
